MRL Elevator

Engineering Tomorrow’s Innovations, Today

SMART CONTROL & SAFETY SYSTEMS

Advanced safety and intelligent control systems ensure smooth, secure, and user-friendly elevator operation with real-time monitoring.

MRL TECHNOLOGY WITH SPACE SAVING DESIGN

Machine Room-Less design eliminates the need for a separate machine room, saving space while delivering efficient and reliable performance.

HIGH PERFORMANCE & ENERGY EFFICIENCY

Engineered for optimal performance with low energy consumption, offering smooth rides, precise leveling, and reduced maintenance costs.

MRL Elevators

An MRL Elevator is a modern lift system that does not require a separate machine room. The motor and control equipment are installed within the elevator shaft, saving building space and reducing construction costs. MRL elevators are energy-efficient, compact, and ideal for residential and commercial buildings. They provide smooth, quiet operation with advanced safety features and modern technology, making them a smart and space-saving vertical transportation solution

Product

  • MRL Elevators

Type

  • Machine Room Less (Gearless Traction

Capacity

  • 4 Passenger (272 kg) to 20 Passenger (1360 kg) – Customizable

Drive System

  • Gearless Permanent Magnet Synchronous Motor (PMSM)

Floors Served

  • Up to 20 Floors (Can be customized)

Speeds

  • 0.65 m/s to 1.75 m/s (Depending on building height)

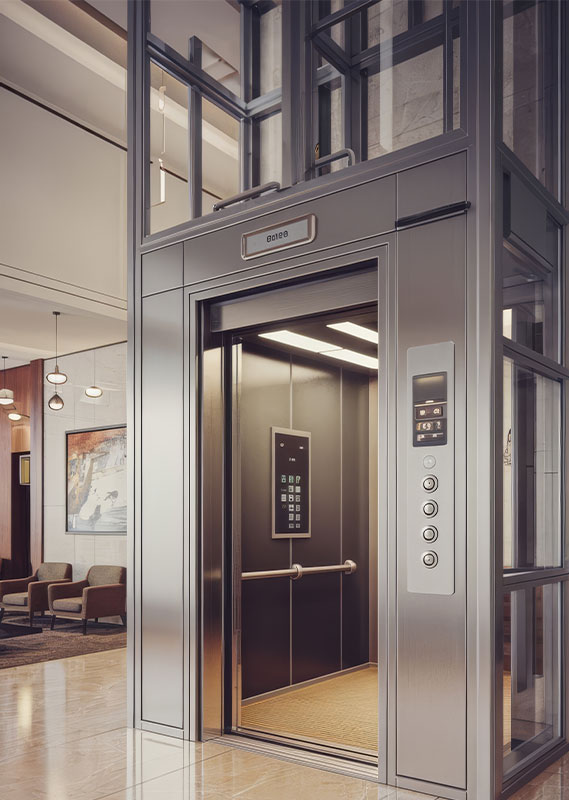

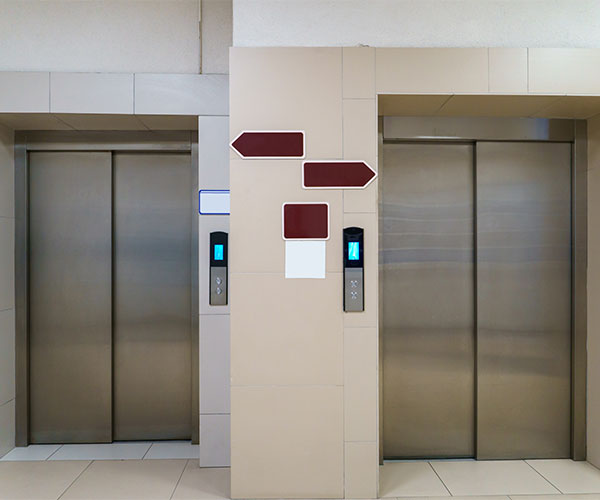

All images used are for illustrative and representation purposes only.*

For More Details & Features Contact Us:

Get a quote

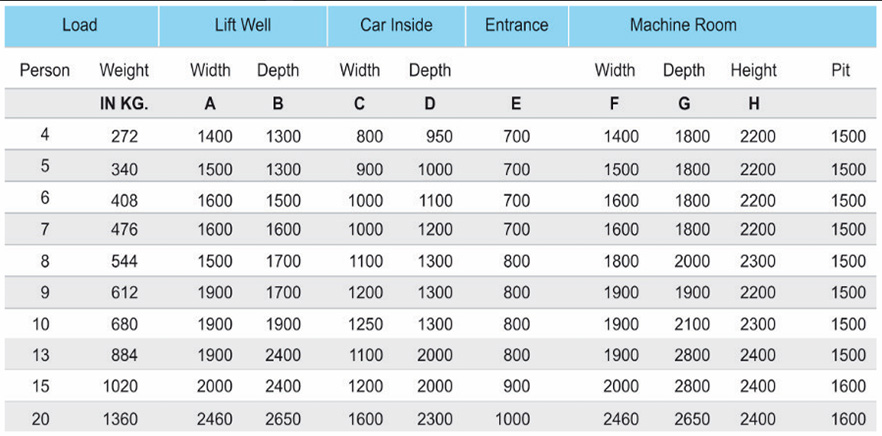

Technical Specification

01

Energy Efficient Gearless Technology

MRL elevators use advanced gearless traction systems that eliminate the need for oil-based machinery. This ensures lower energy consumption, reduced noise, and smooth, vibration-free rides with precise floor leveling for enhanced passenger comfort.

02

Space-Saving Machine Room-Less Design

Designed without a separate machine room, MRL elevators optimize building space and simplify architectural planning. The compact system is integrated within the shaft, making it ideal for modern residential and commercial structures with limited space.

03

Smart & Reliable Performance System

Equipped with intelligent control systems, MRL elevators offer efficient operation, real-time monitoring, and enhanced safety. The system ensures minimal maintenance, quick installation, and long-term reliability for consistent performance.

ADVANTAGES

  • Latest Technology In The World
  • Smoothest Travel
  • Absolute Freedom in Building Designs
  • Substantial Saving On Electricity Cost
  • Save The Construction Cost
  • More Safe
